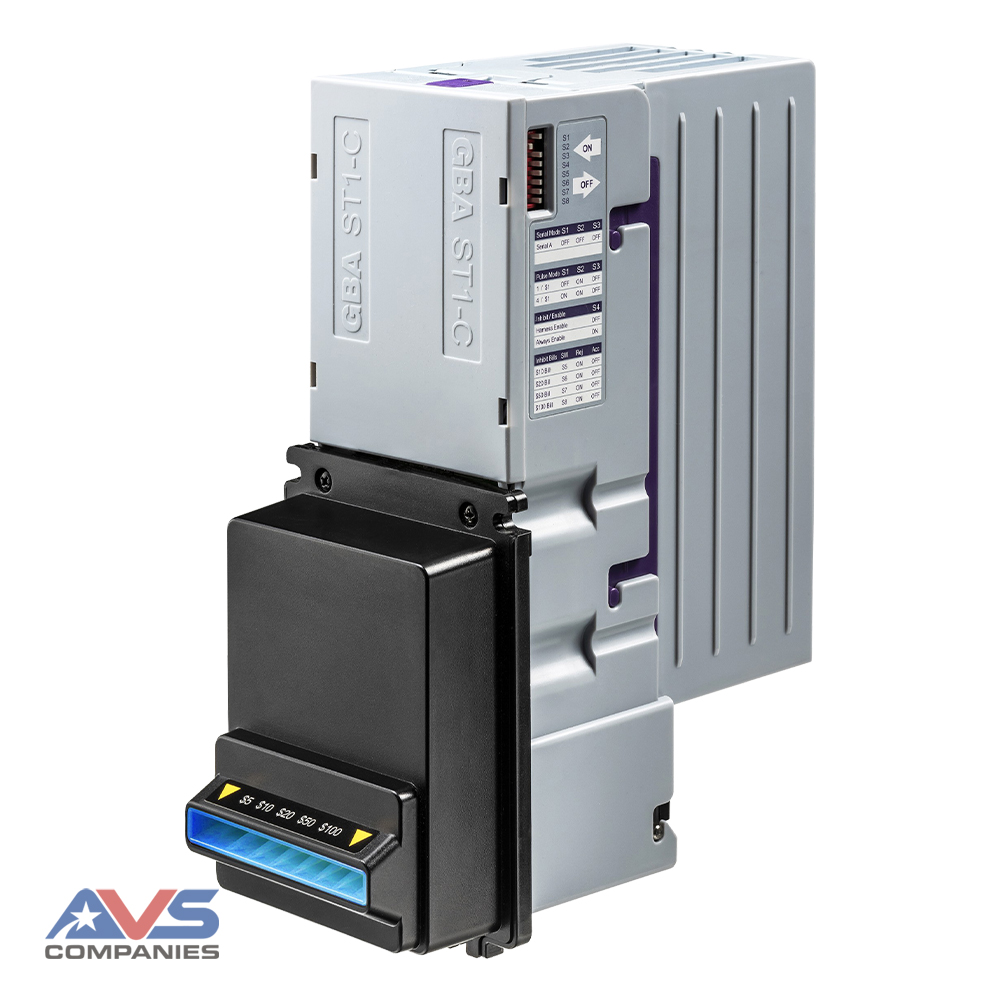

GBA ST1-C 110VAC
Manufacturer:
The popular Global Bill Acceptor, GBA, is a widely distributed and accepted bank note reader, which is renowned for its simplicity, reliability and capacity to accept a wide range of world currencies.
The GBA ST1-C is a versatile, multi-orientation bank note reader designed for those compact applications that require direct 110VAC connectivity. It also has minimal height clearance in either an upwards or downwards note stacking orientation. It can be used in any 110VAC application with notes up to 70mm in width.
With an advanced "Sense Technology" note validation platform, secure note cassette and internalized connections between upper and lower housings, the ST1-C is a sleek, compact and affordable solution for its marketplace.
Features
- All units have a complete USD currency set ($1-$100)
- Accepts up to 32 notes, in 4 directions
- Wide range of interfaces: Parallel, Pulse(relay), NISR and BSCP Serial, ccTalk
- Blue, illuminated note guide for customers to easily see and use
- Secure cassette design with a lock option to store notes
- Lower housing & sensor tray are not attached to the main housing with a cable for easy cleaning
- Press the On Board Program side button 4x to make the motor run to clean the belts
- When released, the new $10 bill will be integrated into the GBA dataset
- UL Approved
Specifications
| Specifications | Installed Dimensions |
|---|---|
| Width | 3.75″ |
| Depth | 6″ |
| Height | 9.25″ |
