HABCO SF28HCBXM Display Freezer

Home/HABCO SF28HCBXM Display Freezer

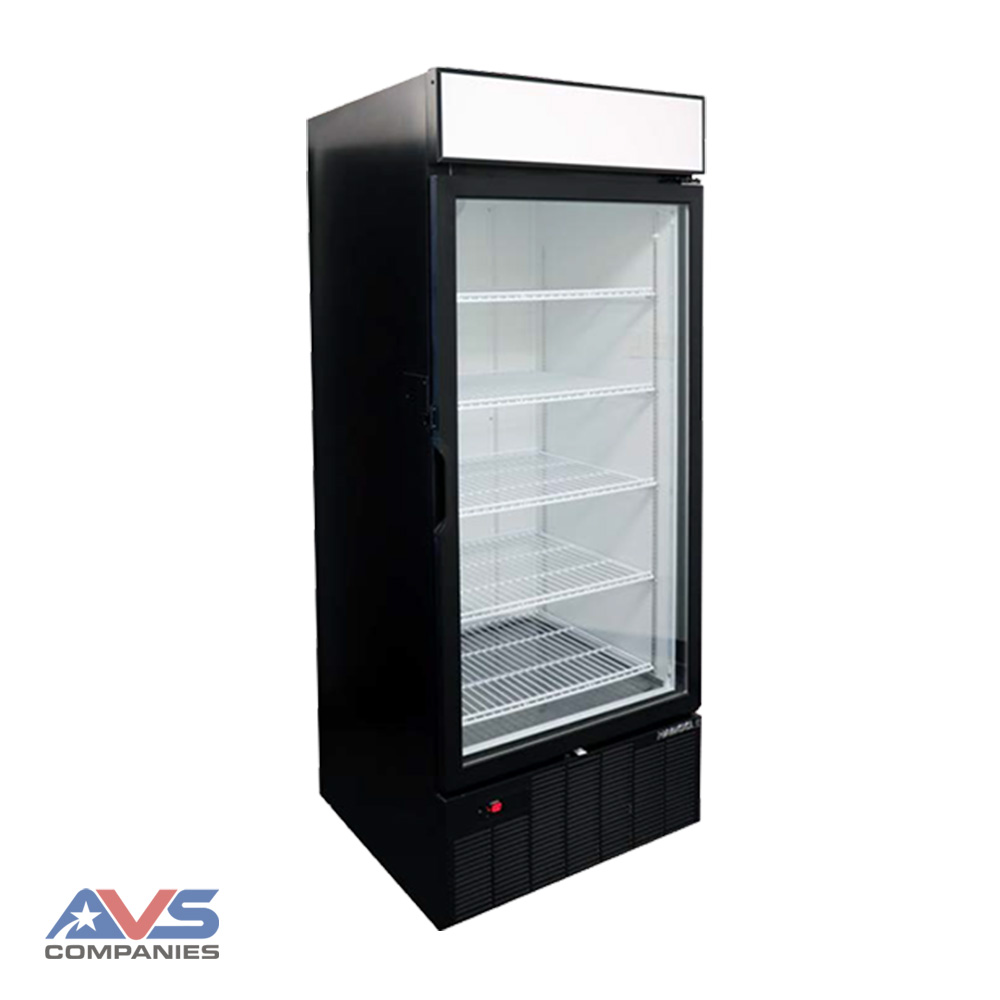

HABCO SF28HCBXM Display Freezer

SF28HCBXM: Designed to enhance the refrigerated storage or display experience to the highest standards of quality and performance.

Refrigeration:

  • Advanced variable speed compressor for extended operational life and improved energy
    efficiency.
  • Split forced-air refrigeration system employs R290 refrigerant within a sealed capillary tube
    system.
  • Condensing unit is bottom-mounted and can be accessed from the front for ease of
    maintenance.
  • Priority, directed air flow provides optimum cooling and energy efficiency through front of unit for
    optimized heat exchange ventilation.
  • Finless, Free&Clear Condenser Coil maximizes air-flow over compressor, reduces energy
    consumption and is non-clogging.
  • Corrosion resistant coated evaporator coil.
  • Automatic, stainless steel condensate control system.
  • Equipped with Energy Efficient Digital Controller featuring visual/audible product protection
    alarm. Freezers factory preset for -23.3°C (-10°F) .
  • Technologically advanced ProducTempTM provides exterior product temperature display.
  • Displays to a resolution within 1°.
  • Energy-Saving, Time-Initiated, Temperature-Terminated Defrost System with Evaporator Fan
  • Motor Delay during Defrost and Fan Motor Interrupt on Door Opening. Features Manual Defrost
    Override.
  • Quality, self-lubricating and sealed motors with streamlined air-flow provide quieter yet robust
    refrigeration.
  • Equipped with Digital Thermometer.

Cabinet:

  • Exterior – durable textured black
  • Interior – NSF approved white aluminum liner with stainless steel floor.
  • Ergonomic raised interior floor.
  • Insulation – cabinet is foamed-in-place with eco-conscious, polyurethane insulation.
  • Heavy duty thread-in leveler legs.

Doors:

  • Self-Closing Swing Doors feature hold-open position, and spring-back protection.
  • Magnetic gaskets are single piece bead-mount construction easily removable for cleaning.
  • Low energy, anti-fog film coated and insulated safety glass with black extruded frame,
    prevents frost.
  • Integrated, injection molded pocket handle(s).

Lighting:

  • Energy Efficient Full LED Array Lighting System for sparkling Illuminated Interior Display,
    on Switch.

Storage:

  • Five (5) white coated shelves 25 1/4″W x 22″D (641mm x 559mm) are NSF approved.
  • Heavy duty aluminum shelving pilasters will not peel or chip adjustment of 1/2″ (13mm)
    increments.
  • NSF-7 compliant for storage or display if pre-packaged aseptic product.

Electrical:

  • Factory power cord installed for connection to a sole-use (dedicated)
  • 115V/60Hz/1-Phase, 15 Amp circuit.
VIEW PDF
Specifications Location Dimensions
Width 30.5″
Height 78″
Depth 31″
Shipping Weight 342 lbs
Manufacturer

HABCO
