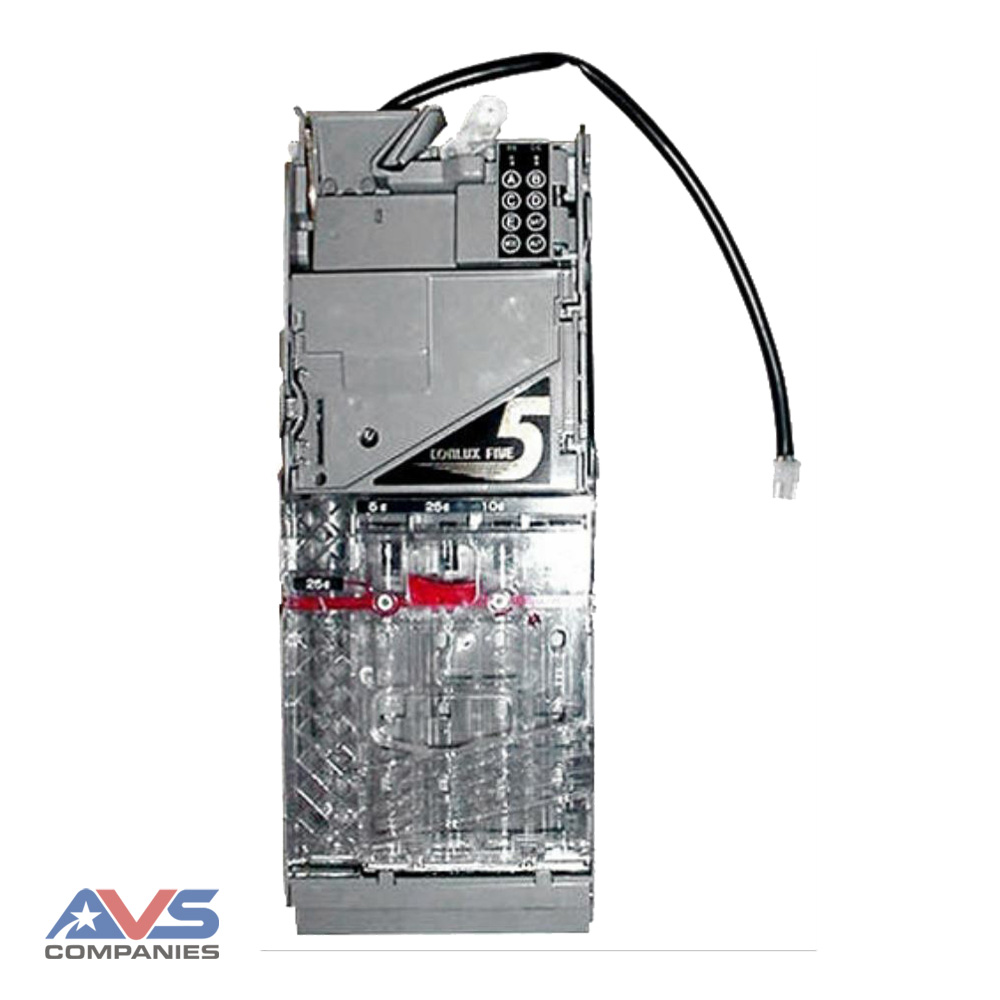

CCM5G Series Coin Changer

Designed to simplify your business through reliable, field-proven performance CCM5G Series Five-Tibe Changer. Field Tested, Field Proven

Description

  • Five-Tube Cassette

  • Greater capacity eliminates change starvation. Sell more product and avoid costly service calls

  • Auto Cassette Programming

  • Cassettes snap into place and coin configurations are automatically recognized by the changer. No programming needed by service technician, no possibility of error. Optimize sales by interchanging cassettes according to vend price

  • 3-Coin Payout System

  • Simultaneous payout of three coins speeds transactions and increases throughput in high-volume locations

  • Smart Payout

  • Unit makes multiple attempts to pay out coins if necessary, virtually ensuring transaction; results in fewer service calls

  • Anti-Salting Channel

  • Unique diversion path protects changer and vendor from salt water vandalism and damage

  • Memory Back-Up

  • Non-volatile memory ensures that changer will retain its settings and transaction history in case of a power failure

  • No Tools Required

  • Designed for easy assembly/disassembly and maintenance, even at vend site

  • Swing-Open Payout Base

  • Swing-open cassette base makes for easy collection and change replenishment. No tools required. Expedites cleaning and removal of foreign material

  • Last Coin Payout

  • No dead inventory

  • Warranty: Limited 2 year warranty

  • Bottom cover Assembly. Self Recognizing Cassette. Simple Touch Pad Inventory Panel

SPECS & DIMENSIONS

  • Interface: Multi-Drop-Bus (M.D.B.)

  • Operating Voltage: +34VDC

  • Power Consumption : Standby 0.10A

  • Operating State: Motor Operation 0.66A / Peak Max. 5 sec 0.92A

  • Operating Temperature Range: 50F (-15°C) to 140°F (+60°C)

  • Insulation Resistance: 20M Ohm or more

  • Weight: 4.2 Lbs. (1.9 Kg)

  • Dimensions: HxWxD: 14.83″H x 5.43″W x 3.23″D / (376mm x 147mm x 82mm)

  • Number of Motors: 1 Motor – 15VDC

  • Number of Solenoids: 5 for Coin Selection – 15VDC

COIN ACCEPTANCE

  • US: 5¢, 10¢, 25¢, $1

  • CAN: 5¢, 10¢, 25¢, $1, $2

  • Switch Selectable for US only, Canadian only, or both

CASSETTE TUBE

  • US – 1 Cassette: 1N, 1D, 3Q PN 5030004030

  • US – 2 Cassette: 2N, 2D, 1Q PN 5030004040

  • US – 4 Cassette: 1N, 1D, 2Q,$1 PN 5030004050

  • US – 5 Cassette: 2N, 3D PN 5030004060
