OptConnect mPCIe

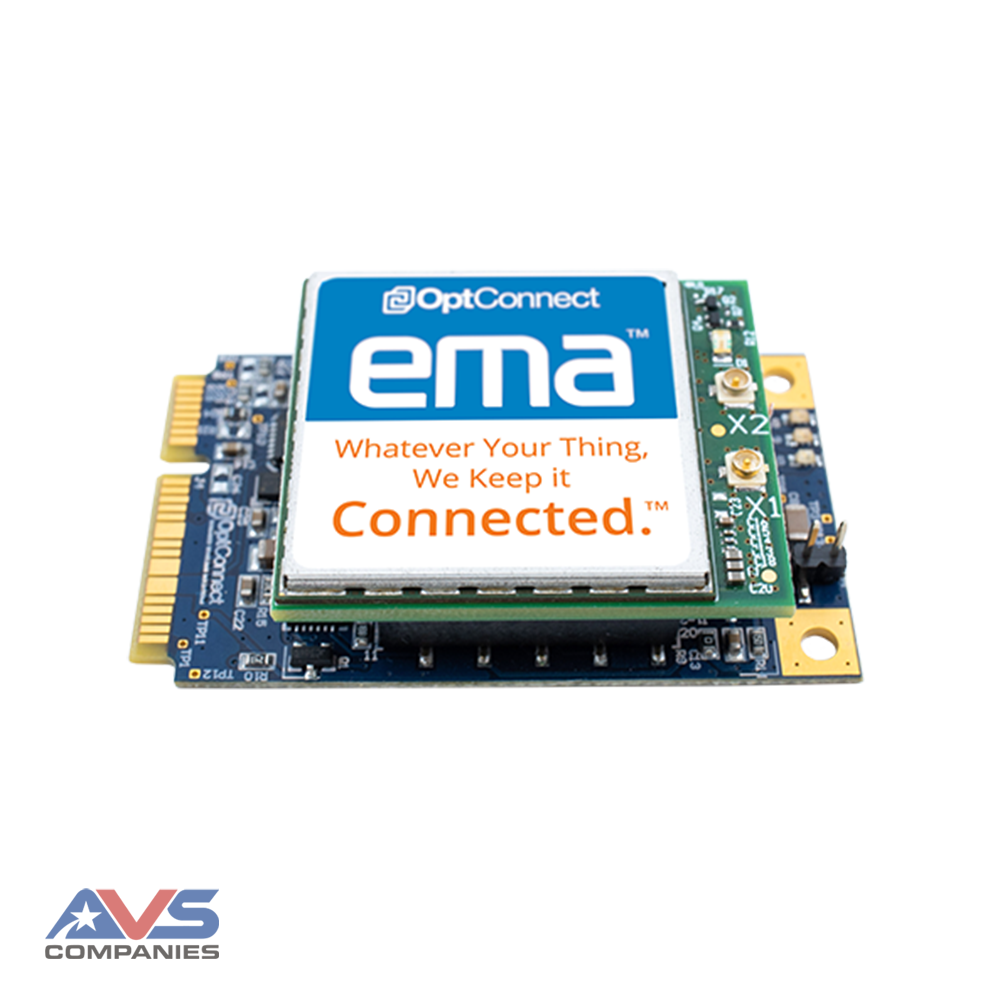

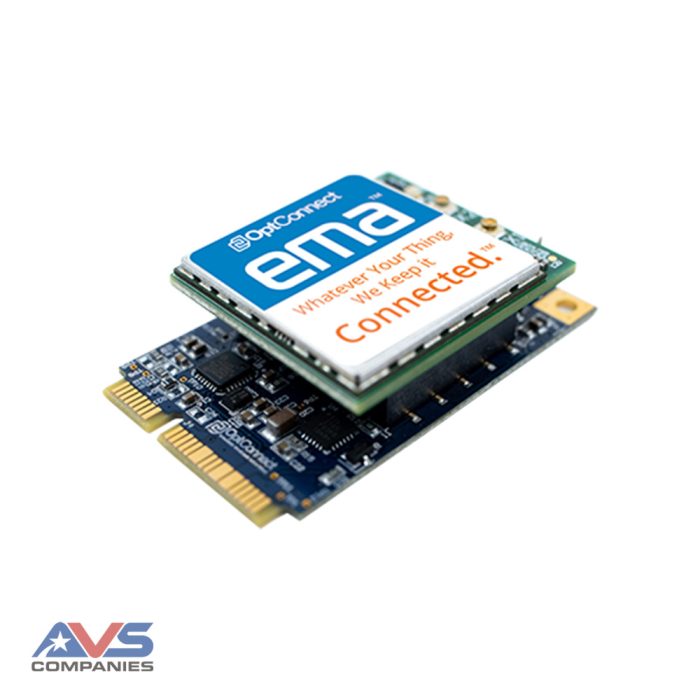

The OptConnect ema™ mini PCI express (mPCIe) adaptor can be used to add smart managed cellular connectivity to any device that has an available mPCIe slot.

Easy Installation

Simply insert an OptConnect ema™ modem into the 20-pin interface and plug the adaptor into the machine you are trying to connect to the internet. Its out of the box, plug-and-play operation with Linux, Android, Windows 7, 8, 10, and embedded environments make for a headache-free cellular experience.

emaLink

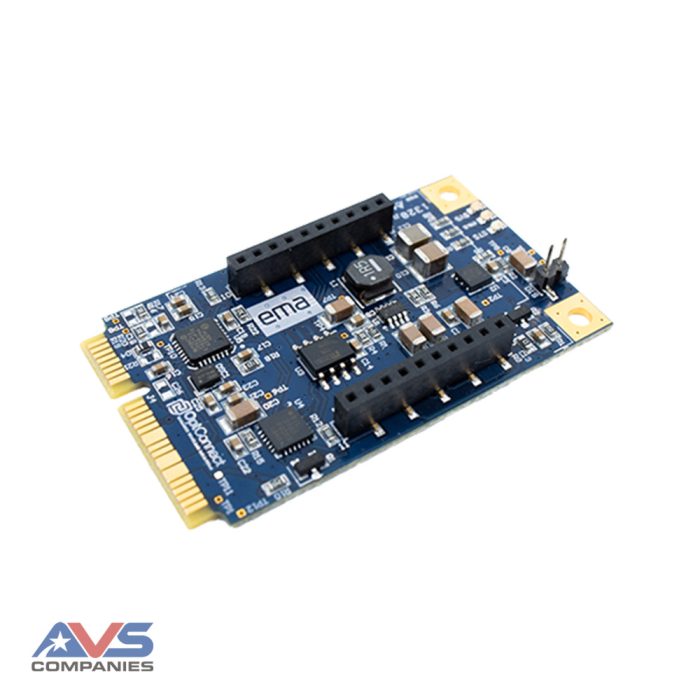

The mPCIe adaptor features an onboard 2×1 UART to USB bridge and 2 port USB 2.0 hub. This allows both the modem AT interface as well as the emaLink management interface to connect with the host device over USB 2.0 as virtual comm ports.

Full Access

Additionally, the modem’s native USB 2.0 interface is also available for use, allowing full access to the OptConnect ema™ modem, and all of its features.

  • Compatible with OptConnect ema™ Modems
  • Power and Status LED Indicators
  • Onboard USB bridge and USB 2.0 Hub
  • Selectable Software/Hardware Modem On/Off/Reset Control
  • Provides Access to all OptConnect ema™ Modem Communication Interfaces; emaLink, Modem USB & UART
  • Conforms to PCI Express Full Mini-Card rev 1.2
Manufacturer

OptConnect
